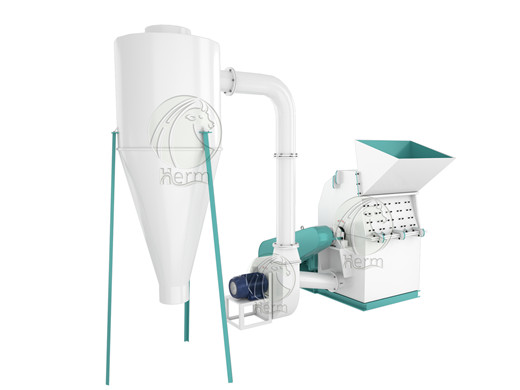

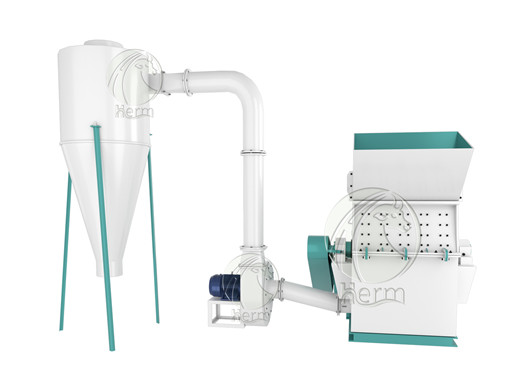

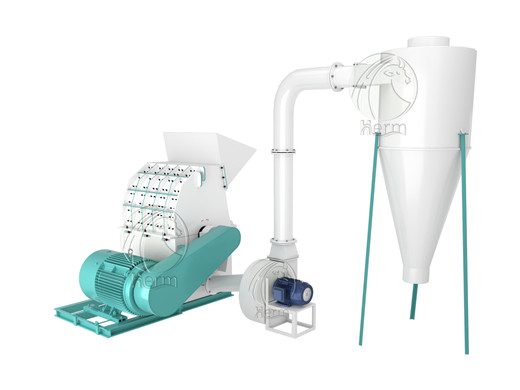

Our grass crusher, also called grass crushing machine, it is a new multi-purpose shredder, ideal equipment for shredding all kinds of straw, poplar, straw, alfalfa, peanut shells, fruit shells, cottonseed husks, etc.
Our grass crusher, also called the grass crushing machine, is a new multi-purpose shredder, ideal equipment for shredding all kinds of straw, poplar, straw, alfalfa, peanut shells, fruit shells, cottonseed husks, etc. The straw crusher can be equipped with an electric motor, a diesel engine, or a 30-50 horsepower tractor. The main machine is composed of a feeding mechanism, a cutting mechanism, a throwing mechanism, a transmission device, a walking mechanism, a protective device, and a frame.
It has the characteristics of reasonable structure, convenient movement, automatic feeding, safety, and reliability. The high-efficiency grass hammer mill has a reasonable structure, is strong and durable, safe and reliable, convenient to operate, has small vibration, high efficiency, and low energy consumption.
1. Hard And Wear-Resistant Hammer
Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.
2. Stable And Long Life
Our feed hammer mill uses high-standard Siemens motors, which can fully guarantee the stability of the equipment.
3. Higher Portability
Built-in self-lock makes the cover flexible and safe.
4. Novel And Efficient
HERM's technical team has innovated the design of the feed inlet, which can quickly, uniformly, and accurately.
5. Hard And Wear-Resistant Hammer
Made of high-standard 65mn steel, the hardness is increased after quenching. Tungsten carbide is used at both corners of the hammer head to improve wear resistance.
6. Rugged And Durable
Our equipment is processed with high-standard steel, and the thickness of the body is 20% higher than the same industry, which greatly improves the service life.
7. Widely Application
The grass crushing machine is a multi-purpose, new-type grinder that is used in large capacity cattle sheep poultry feed mills to crush all kinds of straw, cottonwood, straw, alfalfa, peanut shell, nutshell, etc.
| Model | HM-500 | HM-600 | HM-800 | HM-1000 | HM-1300 | HM-1500 |
| Inlet size（mm） | 500*280 | 600*300 | 800*350 | 1000*450 | 1300*450 | 1500*450 |
| Crushing chamber size | 500*500 | 600*600 | 800*700 | 1000*800 | 1300*800 | 1500*800 |
| Hammer | 30/20pcs | 40/30pcs | 50/30pcs | 66/48pcs | 72/54pcs | 90/72pcs |
| Hammer size（mm） | 180*60*10 | 180*60*10 | 230*60*10 | 230*60*10 | 230*60*10 | 230*60*10 |
| Blade | 4pcs | 4pcs | 6pcs | 4pcs | 4pcs | 3pcs |
| Blade size（mm） | 120*70*10 | 120*70*10 | 120*70*10 | 150*80*10 | 230*120*12 | 230*120*12 |
| Rpm（r/min） | 2900 | 2900 | 2600 | 2400 | 2400 | 2400 |
| Main power（kW） | 22-30 | 30-37 | 37-45 | 55-75 | 75-90 | 90-110 |
| Capacity（kg/h） | 500-800 | 800-1200 | 1500-2000 | 2000-3000 | 3000- 4000 | 4000- 6000 |
