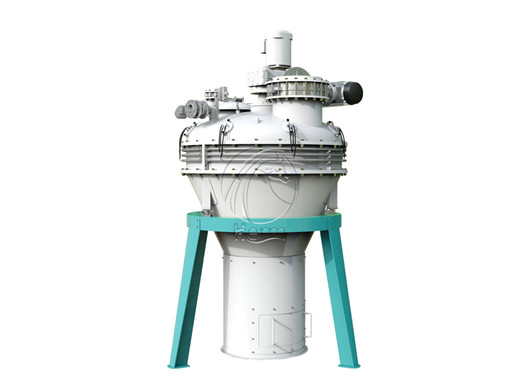

Responding to the pressing demand for advanced low-oil spray solutions, our company has developed an exceptional Vacuum Spray Coating Machine based on the concept of high-oil spray with a vertical agitator.
Responding to the pressing demand for advanced low-oil spray solutions, our company has developed an exceptional Vacuum Spray Coating Machine based on the concept of high-oil spray with a vertical agitator. By refining our existing series of vacuum spray machines, we eliminated the need for a vacuum pump and introduced a vertical spray machine for extruding particles. This modification not only reduces costs but also provides customers with an affordable investment option.
1. This machine is capable of handling large spray volumes and meets the requirements for spraying viscous liquids.
2. It offers a wide range of liquid additives, ensuring uniform spraying even at minimal material ratios as low as 1%.
3. Complete mixing with no dead spots and residue-free discharge.
4. Excellent sealing performance, high vacuum degree, reliable vacuum maintenance, and long sealing lifespan.
5. Accurate control of liquid spraying based on precise weighing of particle materials, ensuring precise mixing ratios.
| Parameter | PTZL2000 | PTZL3000 | PTZL4000 | PTZL5000 |
| Effective volume（L/Batch） | 2000 | 3400 | 4000 | 5000 |
| Liquid addition amount（%） | 1~36 | 1~36 | 1~36 | 6(3)~36 |
| Capacity（t/h） | 4~8 | 6~12 | 12~14 | 15-20 |
| Particle diameter（mm） | 2~15 | 2~15 | 2~15 | 2~15 |
| Spray uniformity coefficient of variation CV value（%） | ≤7 | ≤7 | ≤7 | ≤7 |
| Main motor power（kW） | 15+22 | 22+22 | 22+22 | 37+22 |
| Vacuum retention（mbar/5min） | ≤100 | ≤100 | ≤100 | ≤100 |
| Batch working time（min） | 4~6 | 4~6 | 4~6 | 4~6 |
| Residue rate（‰） | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Maximum vacuum degree（mbar） | 40 | 40 | 40 | 40 |
