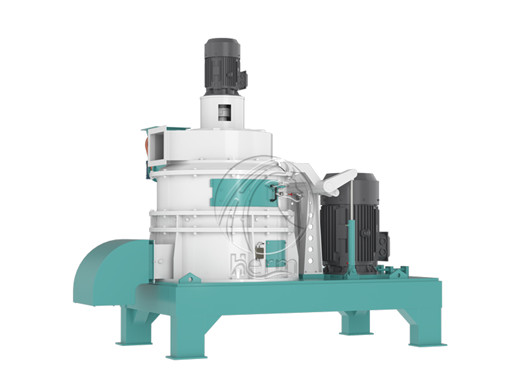

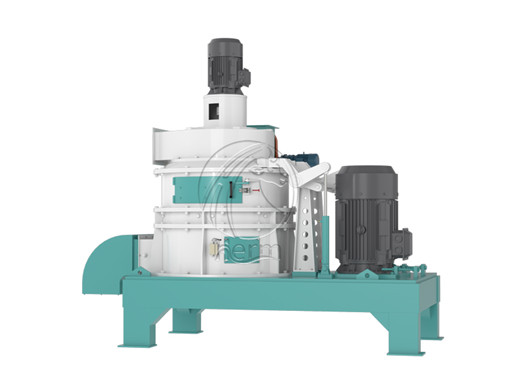

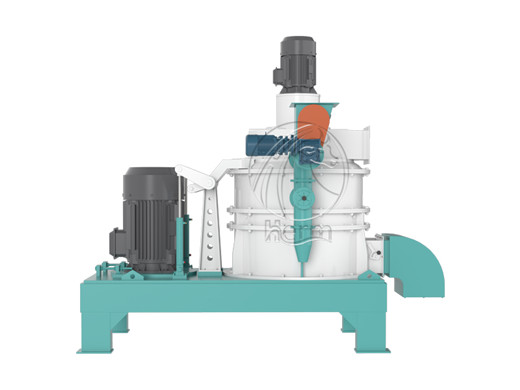

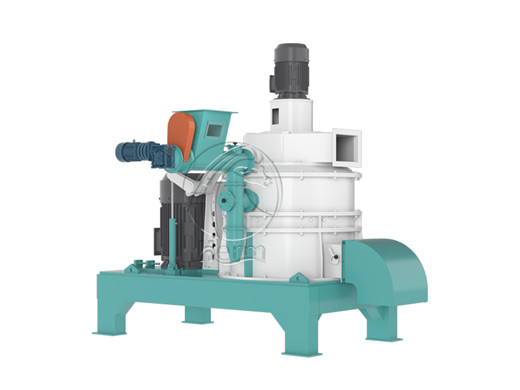

This ultrafine grinder offers higher output, lower electricity consumption per ton, longer component lifespan, and lower user operating costs. With increased output for the same formula, a single unit can meet the production capacity requirements of an extrusion or granulation production line.
This ultrafine grinder offers higher output, lower electricity consumption per ton, longer component lifespan, and lower user operating costs. With increased output for the same formula, a single unit can meet the production capacity requirements of an extrusion or granulation production line. It reduces floor space, simplifies the process flow, and lowers user investment costs.
This ultrafine grinder is widely used for processing various feed materials, including expanded fish feed, shrimp feed, pelletized fish feed, and piglet feed. It's also suitable for ultrafine grinding processing in industries such as food, pharmaceuticals, alcohol, and solvents.
Excellent fineness, high output;
Stable equipment performance, with current fluctuation less than 10% of rated current;
Durable grinding components.
| Project | Data | |
| Capacity | South American White Shrimp Feed (passing 80 mesh 95%) (t/h) | ≥ 8.5 |
| Premium Expanded Fish Feed (passing 80 mesh 92%) (t/h) | ≥ 10.0 | |
| Regular Expanded Fish Feed (passing 80 mesh 80%) (t/h) | ≥ 11.0 | |
| Regular Pelletized Fish Feed (passing 60 mesh 80%) (t/h) | ≥ 13.0 | |
| Power | Main motor (kW) | 220 |
| Classifier wheel motor (kW) | 18.5 | |
| Fan motor (kW) | 75 | |
| Accessories | Hammer knife (piece) | 30 |
| Wear-resistant plate (block) | 15 | |
| Dimensions | Length（mm） | 3750 |
| Wide（mm） | 3350 | |
| High（mm） | 3210 | |
