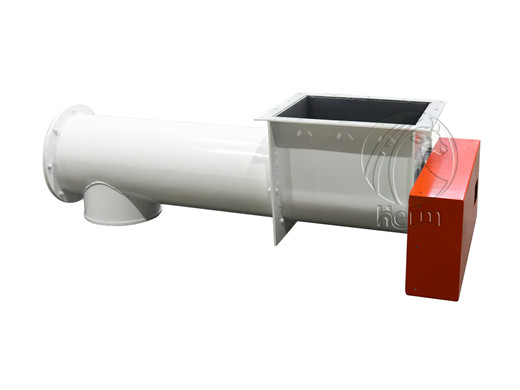

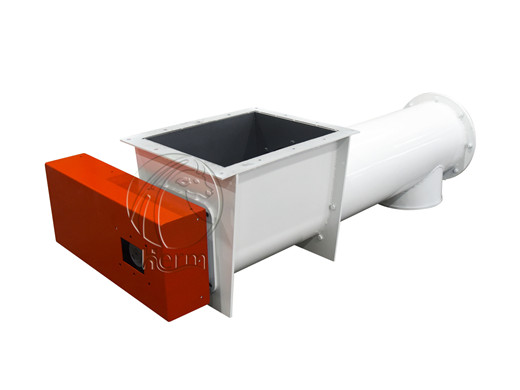

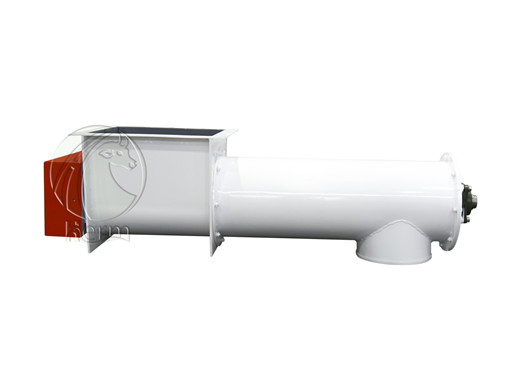

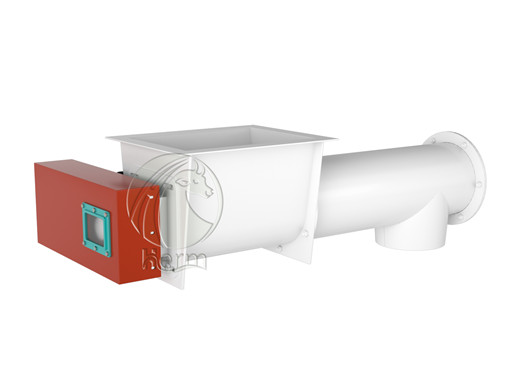

TLSS series horizontal screw conveyor is a kind of fixed mechanical equipment. It is suitable for horizontal conveying or near-horizontal conveying of grain, oil, feed and other granular or powdery materials.
TLSS series horizontal screw conveyor is a kind of fixed mechanical equipment. It is suitable for horizontal conveying or near-horizontal conveying of grain, oil, feed, and other granular or powdery materials. The suspension shaft adopts brass or machine oil bearings, which are convenient and simplified for lubrication. Except for the wall support, steel punching is used to save labor and materials. The outlet wall-bearing housing with a simple dust isolation structure is safe and reliable. The screw has various screw-in forms such as left-handed and right-handed. The inlet and outlet of the wall-bearing housing are interchangeable, making the process more flexible.
1. Sealed working conditions to prevent dust from flying and improve the working environment with simple structure, small size, and compactness.
2. There can be several feed and discharge ports at the same time and the process arrangement is flexible.
3. It is widely used in grain, feed building materials, chemical industry, electric power, coal, and other industries, and is suitable for conveying powdery, granular, and small block materials horizontally or obliquely.
| Model | Inlet Size(mm) | Outlet Size(mm) | Pellet Capacity(t/h) | Power Capacity(t/h) |
| TLSS12 | 40 | 60 | 1.6 | 0.6 |
| TLSS16 | 60 | 65 | 3.6 | 1.4 |
| TLSS20 | 50 | 70 | 6.9 | 2.6 |
| TLSS25 | 70 | 100 | 13.6 | 5.2 |
| TLSS32 | 75 | 105 | 28.9 | 11 |
| TLSS40 | 85 | 115 | 41.1 | 15.6 |
| TLSS50 | 100 | 130 | 80.2 | 30.6 |
